DS E120 SINGLE LEAF
Fire resistant doorsets and wall hatches DEDENDOOR DS E120-1 are characterised by distinctly stiff construction. Doors are certified acc. to newest EN norms and requirements. The tests are carried out according to EN 1634-1 and the classifications are pronounced according to EN 13501-2. DEDENDOOR DS 120 doors are available in steel frames as 1-leaf and 2-leaf and feature El₂ 120 fire-resistant performance.

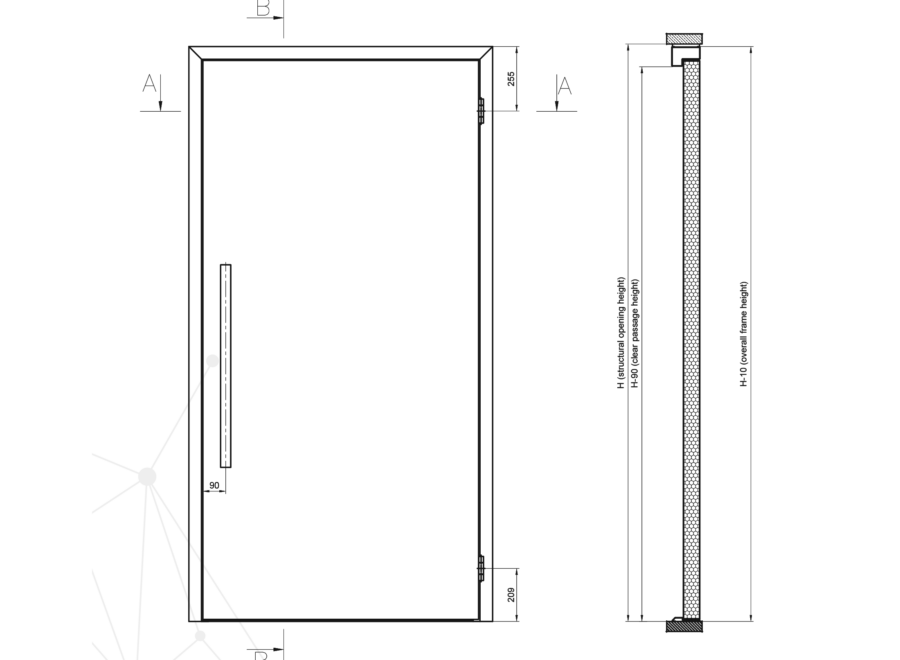

DOOR SIZES
steel frames
EQUIPMENT
STEEL SHEETS
The steel sheets are powder painted and may be covered with decorative PVC foil also optional kick plates made with corrosion resistant steel sheet.
Door leaves are hung in zinc coated steel and powder painted frame, 2 pcs of stainless steel 3D hinges of class EN 1.4301 / AISI304
Altogether this minimised construction causes less operational forces working on the doors’ hinges, lock, door closers, this having a direct positive effect on enhanced functional durability.
- U-Value: min. 1,6 W/m²K
- Mechanical resistance: class 3 acc. to EN 1192
- Closing durability: class 5 (200,000 cycles) acc. to EN16034
- Anti-corrosion class: C3 (standard) up to C5
- Acoustic solutions
SPECIFICATIONS
The steel sheets are powder painted and may be covered with decorative PVC foil also optional kick plates made with corrosion resistant steel sheet.
Door leaves are hung in zinc coated steel and powder painted frame with min. 2 pcs of stainless steel 3D hinges of class EN 1.4301 / AISI304
→ custom manufacturing
→ leaf without rebate
→ rigid steel frame, rectangular frame
→ leaf thickness 65 mm
→ leaf construction of 2 steel skins 0.9 mm
→ paper honeycomb infill
→ powder coating, RAL palette
→ width=1220 (+15%max)
→ Height=2300 (+15%max)
→ Fire resistance test report no. 533452
– Warrington Fire UK
→ Certificate of Constancy of Performance
– under preparation
→ 2 pcs of non-adjustable stainless steel hinges
(optional: 2 pcs of stainless steel 3D hinges)
→ Adjufix screws for faster installation
→ set of stainless steel handles / push plate
→ reinforcement for door closer
→ door closer
→ locks, panic locks, handles, panic bars, electric strike, maglocks
→ other alternative equipment and other door features on request
→ glazed with rectangular or round glazing
→ single or double glass
