DEFENDOOR DS 30 HP | 60 HP
The DEFENDOOR DS HP solid steel fire doors are made of
two galvanized steel sheets with a thickness of 0.75 mm with Rockwool mineral wool filling with a density of 120 kg/m3 in the fire resistance class EI230 and 140 kg/m3 in the EI260 class. The total thickness of the door leaf is 65 mm.
The low weight of the door leaf minimizes mechanical stress on the hinges, lock and closer. As a result, their durability and service life are increased. The leaves and frames are surface-treated in powder paint from the standard RAL color range.
The DEFENDOOR DS solid fire doors are manufactured in a single-leaf or double-leaf version.
DOOR SIZES
ALUMINUM FRAME
EQUIPMENT
Surface Finish
The steel sheets are powder coated and can be covered with decorative PVC foil or optional plates made of corrosion-resistant steel sheet.
Door leaves up to 2500 mm high are hung in an aluminum pressing frame with at least 2 pcs of stainless steel hinges of class EN 1.4301 / AISI304
Overall, this design causes a lower overall load acting on the door hinges, locks, door closers, which has a direct positive impact on increased functionality and durability.
Aluminum Frame
Modely DEFENDOOR HP so skrytou polodrážkou (plné krídlo dverí a zárubňa ) sú inovatívnou alternatívou k tradičným DEFENDOOR DS dverám. Tu zohráva úlohu hliníková zárubňa s dvojitou polodrážkou, ktorá skrýva polodrážku dverného krídla, čo umožňuje, aby zostala nezmenená konštrukcia dverného krídla, čím sa minimalizujú náklady na neštandardný model.
Zárubne DEFENDOOR DS sú vyrobené z lisovaného hliníka v hrúbke 3 mm, štandardne v rohovom profile (Z), s možnosťou výmeny za obložkovú alebo rámovú zárubňu spoje majú kvalitnú a estetickú úpravu. Hliníkové zárubne navyše nepredstavujú riziko korózie vo vonkajšom alebo inom potenciálne vlhkom prostredí.
PRODUCT INFORMATION
→ Fire resistance: EI230 / EI260
→ Smoke resistance: Sa/S200
→ Mechanical resistance: class 3 or 4 EN-1192
→ Mechanical resistance/closing: class 5 / 200,000 cycles
→ Acoustic insulation: Rw = 34.42 dB / RA1 = 32.41 dB
→ Heat transfer coefficient: 1.1¸ 1.6 W / (m2•K)
→ Corrosion resistance: Class: C3 / C4 / C5(M)

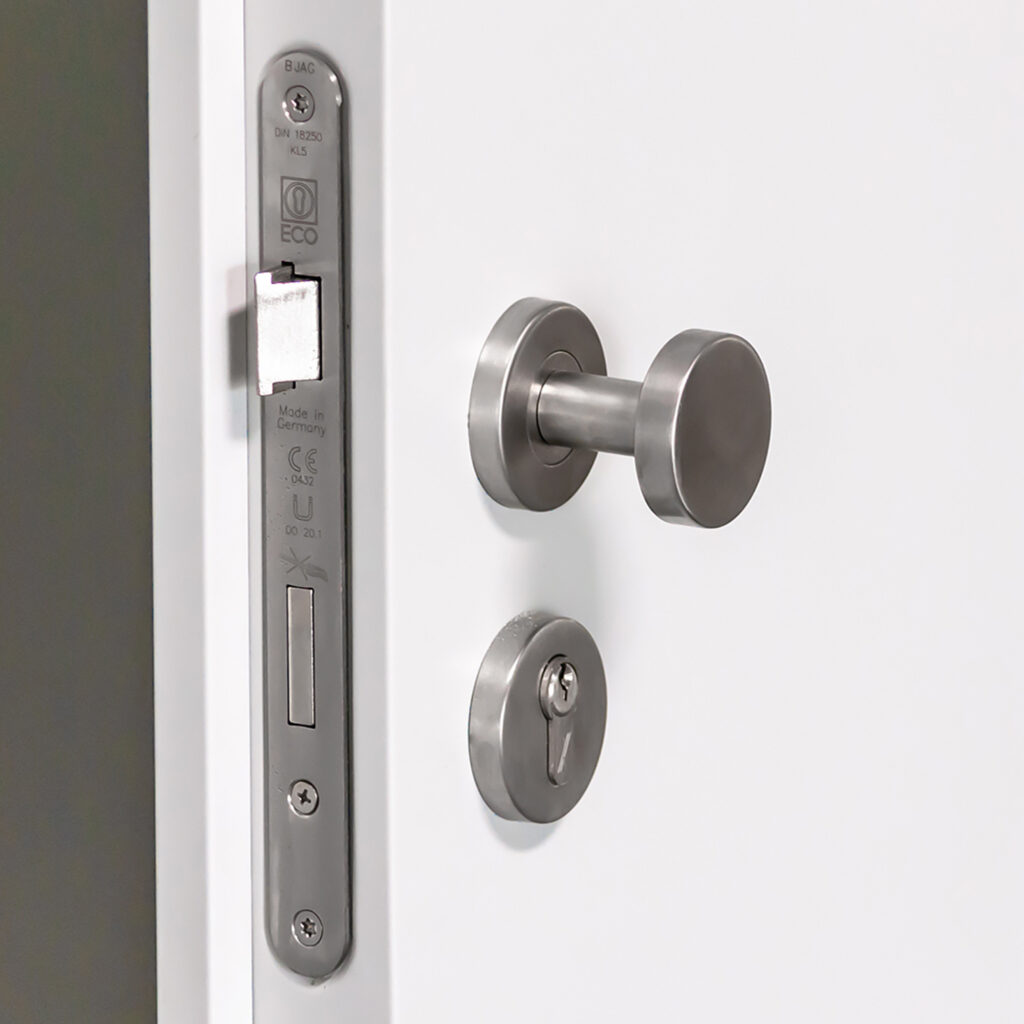

→ Mortise lock

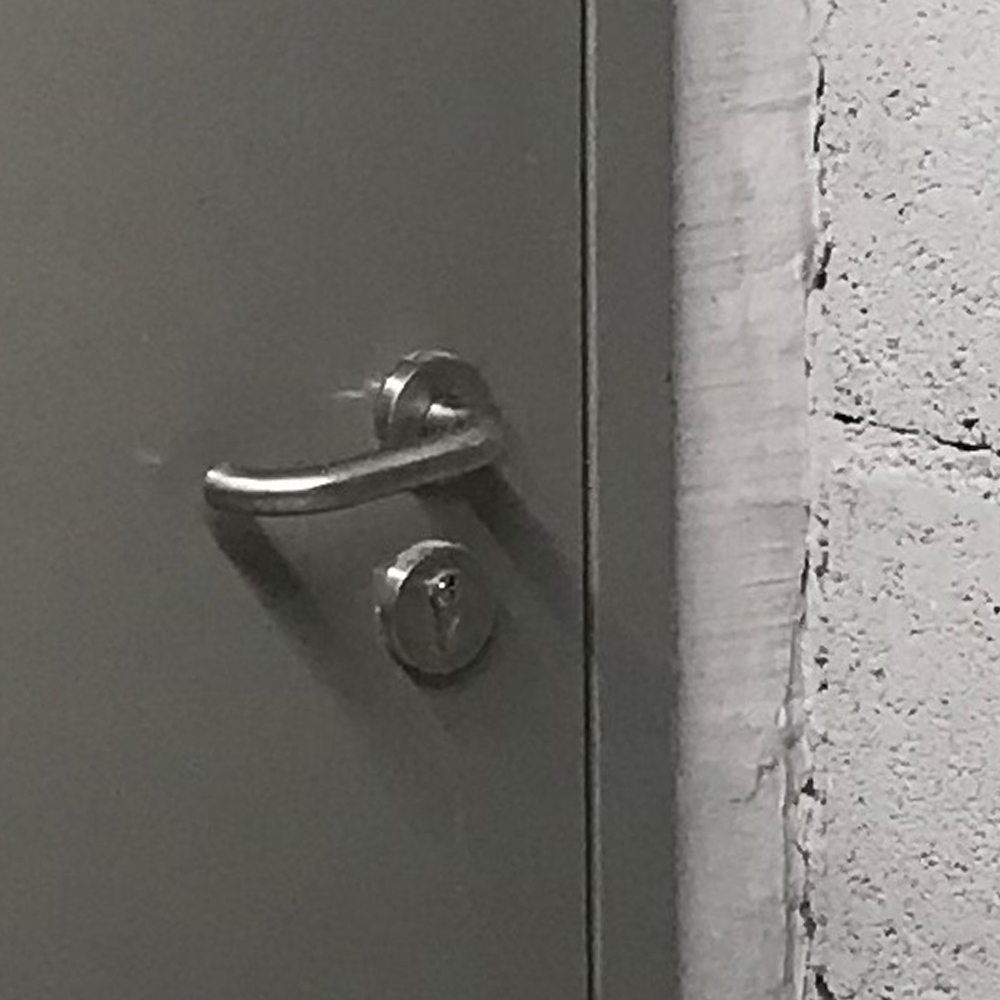

→ Stainless steel U-shaped fitting on long escutcheon
→ Building insert (3 x key)

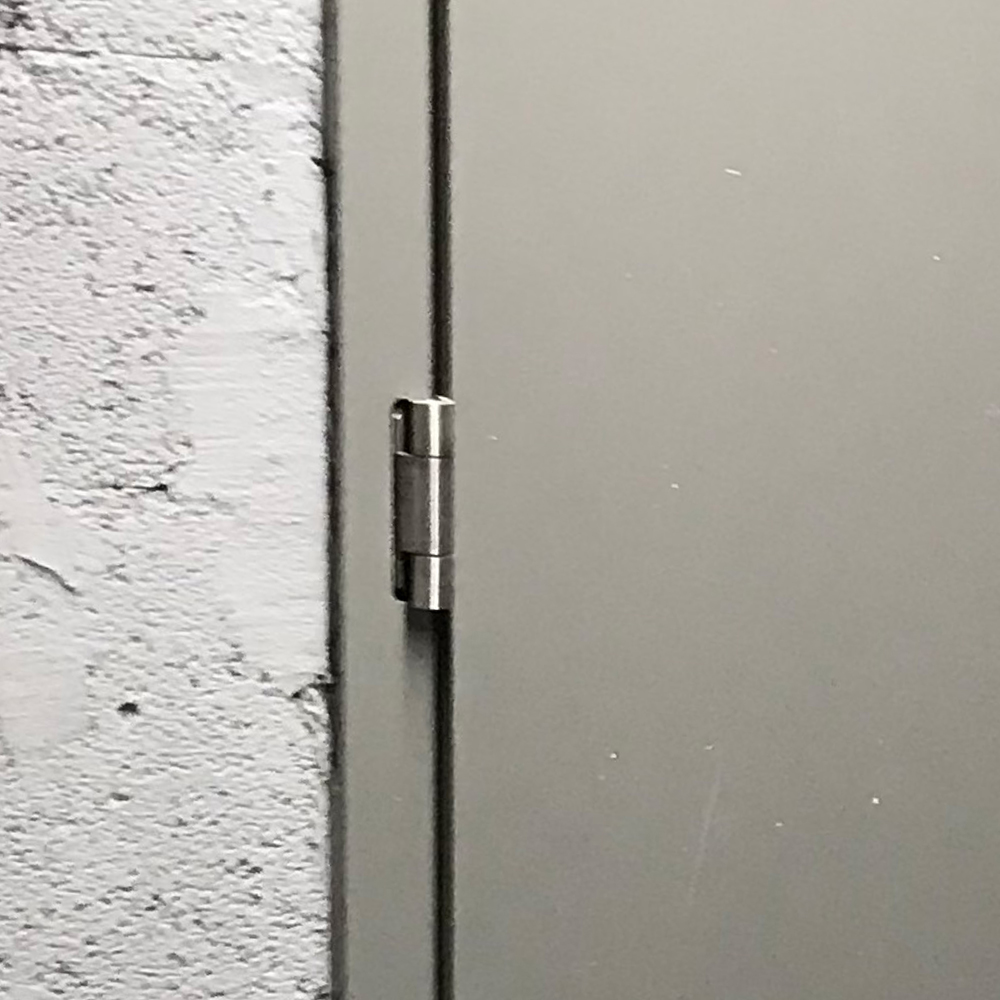

→ 2 x stainless steel hinge
→ 2 x anti-drop pin
→ Perimeter rubber seal and fire protection tape
→ Additional hinge or 3D adjustable hinges
→ Panic locks and fittings in accordance with EN 1125 and EN 179

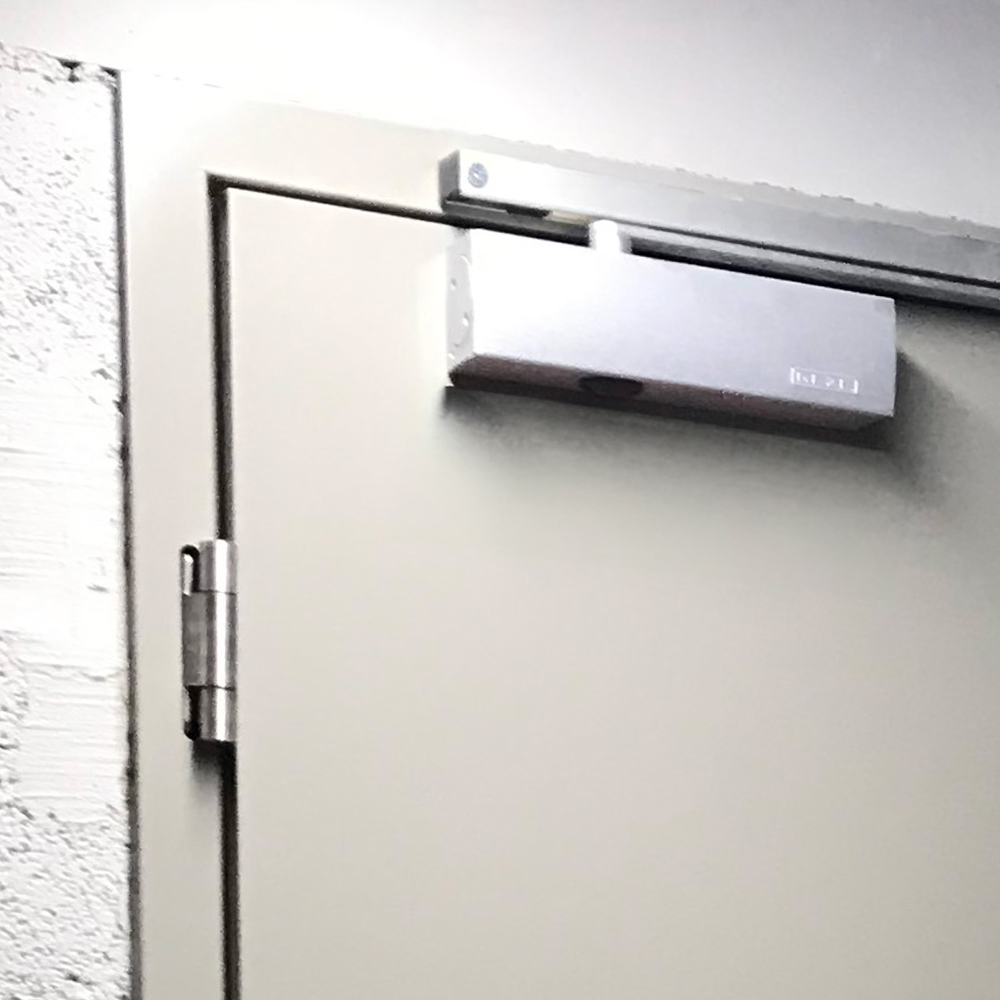

→ Door closers in accordance with EN1154
→ Electromechanical and electromotive locks
→ Electric strike (befo)
→ Magnetic contacts

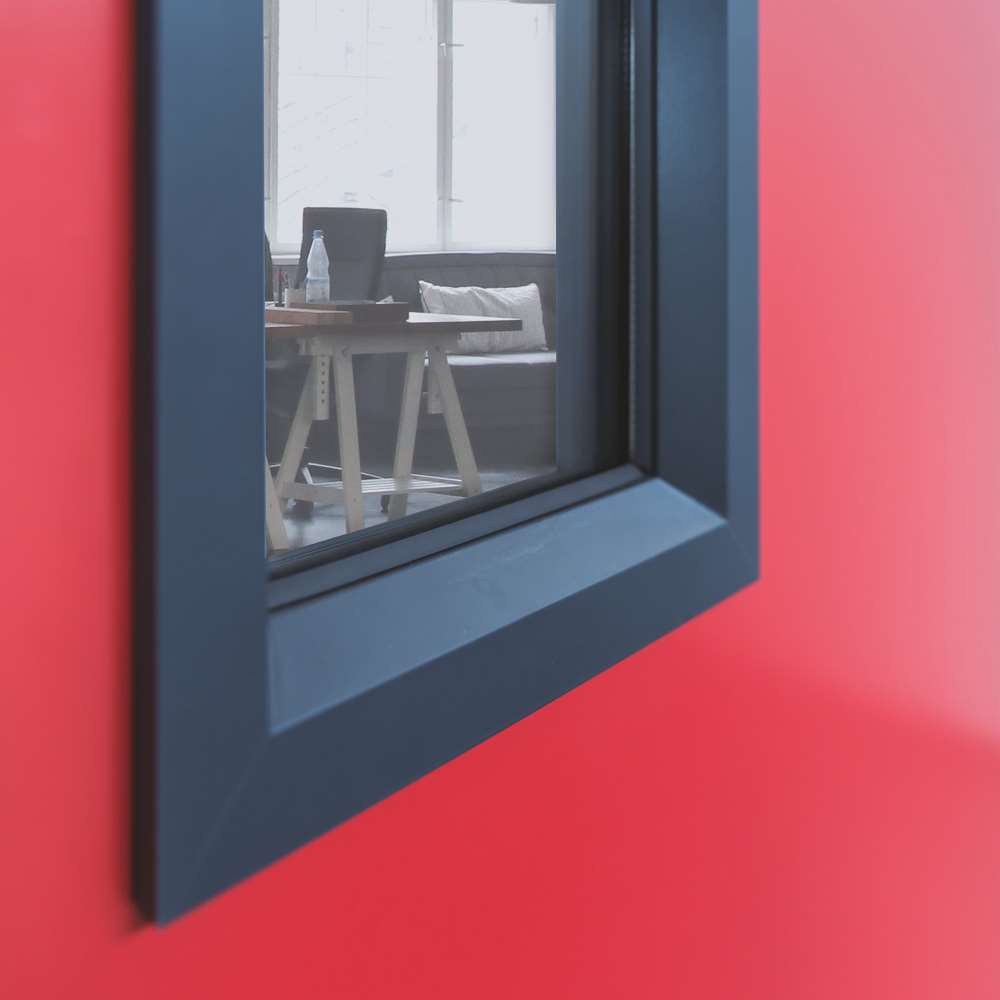

→ Rectangular or circular glass panels
→ Fire-rated ventilation grilles

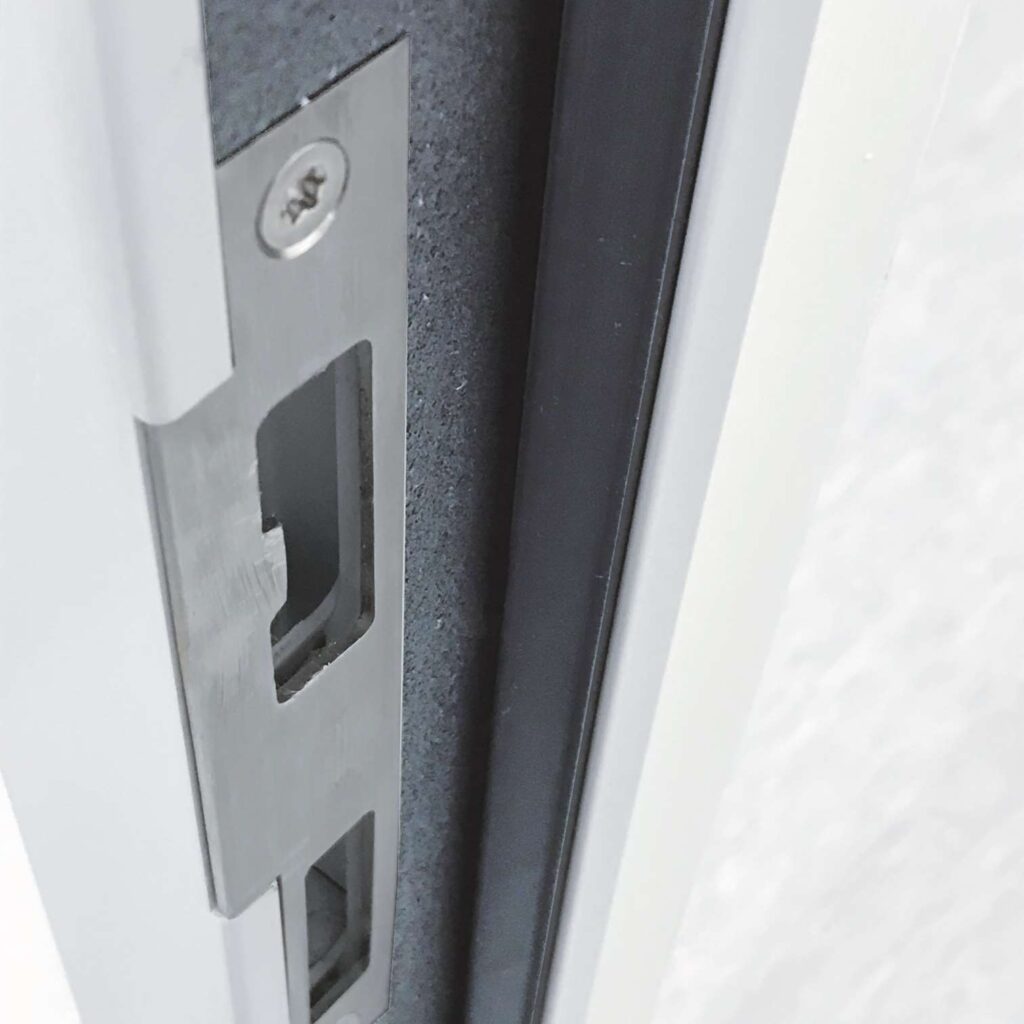

→ Stainless steel strike plates
→ Electromagnets on door leaves
→ Automatic bottom drop seal
Single-leaf doors
Dimensions of door frames DEFENDOOR DS 30-1 and DS 60-1:
→ Width: 766 mm, 2550 mm
→ Height: 1550 mm, 2500 mm
Double-leaf doors
Dimensions of door frames DEFENDOOR DS 30-2:
→ Width: 776 mm¸ 2550 mm
→ Height: 1550 mm¸ 2500 mm
Dimensions of door frames DEFENDOOR DS 60-2:
→ Width: 776 mm¸ 2506 mm
→ Height: 1616 mm¸ 2508 mm
INSTALLATION OF STEEL DOORS DEFENDOOR DS
DEFENDOOR DS HP steel doors feature innovative features to facilitate installation. Elements on the frame, such as hinges and protective covers for the lock latch and safety latches, contain threaded holes for steel screws or expansion anchors (optional). Screws with metal plates on the DFM adjustable hinges ensure a firm fastening of the door leaf directly to the wall, preventing it from sagging.

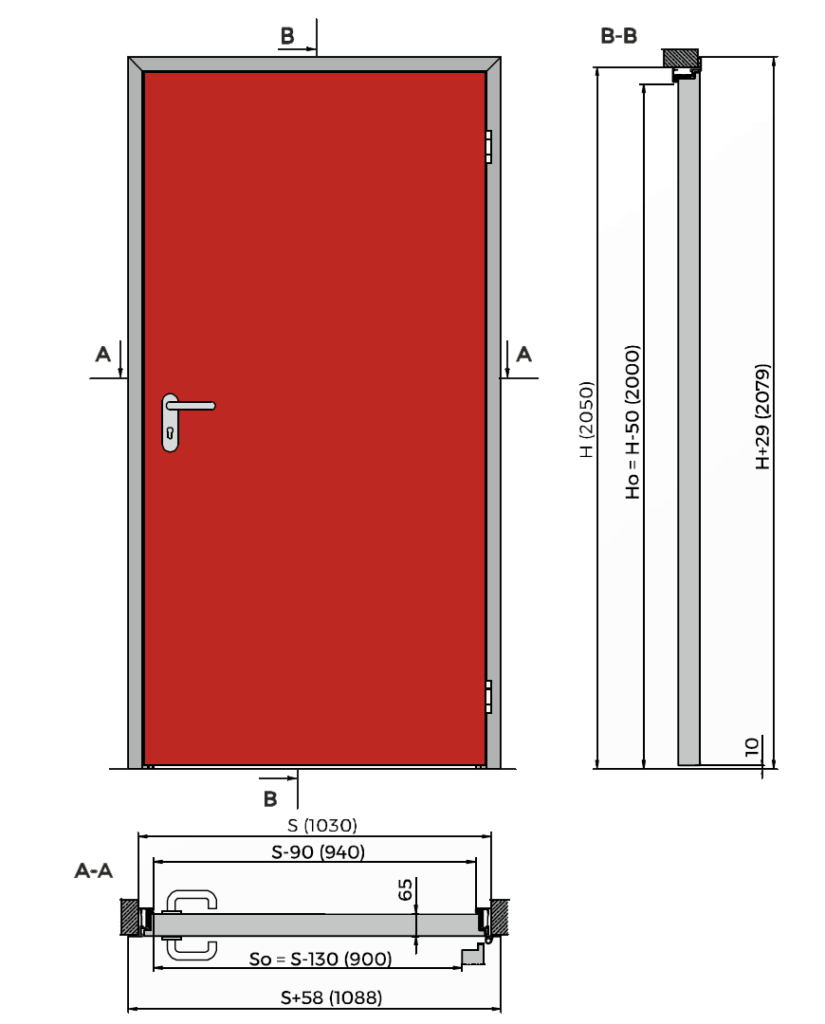

Single-leaf door
DEFENDOOR DS 30-1 | DS 60-1
Dimensions of door frames DEFENDOOR DS 30-1 and DS 60-1:
→ Width: 776 mm, 2550 mm
→ Height: 1550 mm, 2500 mm

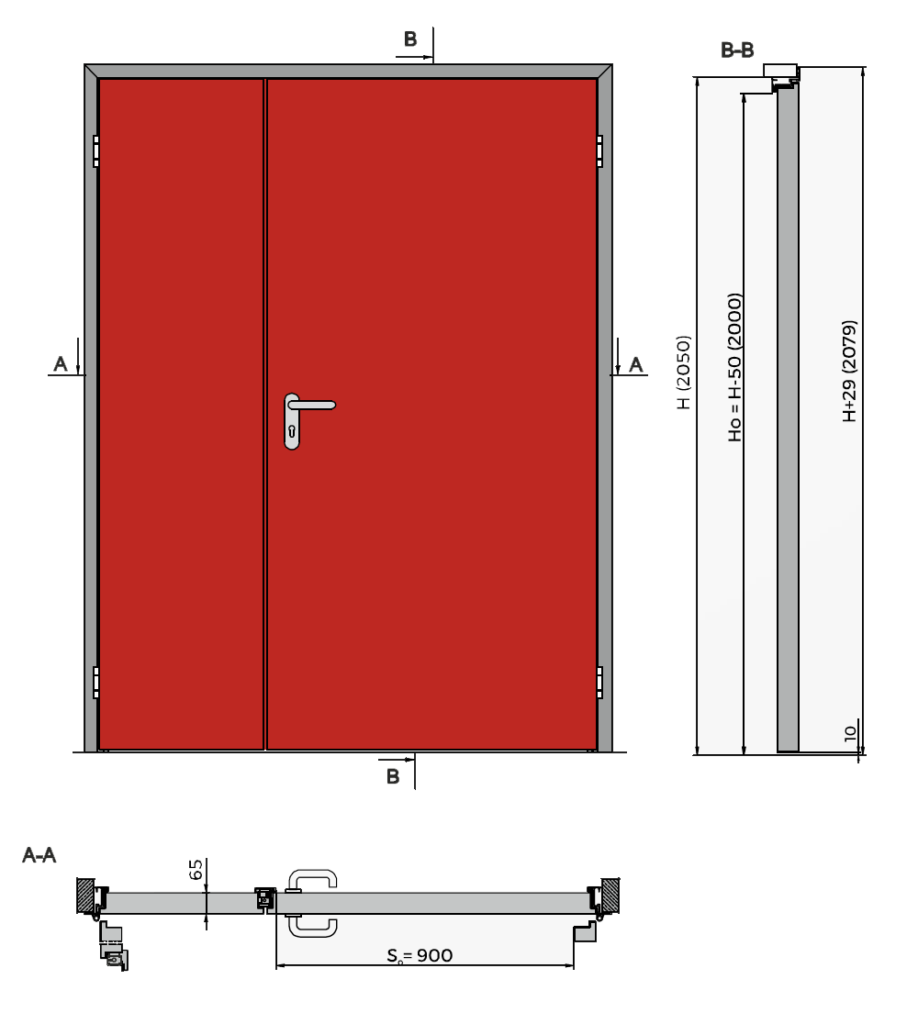

Double-leaf door
DEFENDOOR DS 30-2 | DS 60-2
Dimensions of door frames DEFENDOOR DS 30-2:
→ Width: 776 mm¸ 2550 mm
→ Height: 1550 mm¸ 2500 mm
Dimensions of door frames DEFENDOOR DS 60-2:
→ Width: 776 mm¸ 2506 mm
→ Height: 1616 mm¸ 2508 mm
CERTIFICATES AND ADDITIONAL DOCUMENTS
DOORS FOR INTERIOR USE:
→ National Technical Assessment
→ National Certificate of Product Performance
→ Declaration of Technical Performance
DOORS ON ESCAPE ROUTES:
The National Certificate of Product Performance defines DEFENDOOR DS as a door suitable for use on evacuation routes according to EN 1125.
Manufacturing standard
door frame types
